SKU: IM3220-00000

Interior Dimensions:
44.00" x 14.00" x 8.50" (111.8 x 35.6 x 21.6 cm)

Price
$511.95 CAD
Size:
No Foam
Color: Black

Free Shipping over $195 *

Some Exceptions. Details Below...

30-Day Returns

Return unused items within 30 days.

Lifetime Warranty

Feature subheading

Shipping Details

Product Description

The Pelican Storm iM3220 Case

  • With a unique Press and Pull latch that locks automatically, but open with a light touch
  • Six Press and Pull Latches
  • Two Padlockable Hasps
  • Two Double-layered, Soft-grip Handles
  • Vortex Valve
  • Powerful Hinges
  • O-ring seal
  • Lightweight Strong HPX® Resin
  • Retention Strap Instructions
  • The Pelican Storm iM3220 case is available in Canada right here at CasePlace.ca

Replacement foam for the Pelican Storm iM3220 Case:

Product Specifications

INTERIOR (L X W X D)
44.00" x 14.00" x 8.50" (111.8 x 35.6 x 21.6 cm)

EXTERIOR (L X W X D)
47.20" x 16.50" x 9.20" (119.9 x 41.9 x 23.4 cm)

LID DEPTH: 2.00" (5.1 cm)

BOTTOM DEPTH: 6.50" (16.5 cm)

TOTAL DEPTH: 8.5" (21.6 cm)

INT VOLUME: 3.03 ft³ (0.086 m³)

WEIGHT WITH FOAM: 24.80 lbs (11.2 kg)

WEIGHT EMPTY: 20.40 lbs (9.3 kg)

BUOYANCY: 188.32 lbs (85.4 kg)

FOAM LAYERS: Layer 1 (Lid): 2.00" - Convolute / Layer 2 (Base): 0.50" - Pad / Layer 3 (Base): 2.00" - Pad / Layer 4 (Base): 2.00" - Pad / Layer 5 (Base): 2.00" - Pad

BODY: Injection Molded HPX high performance resin

LATCH: Valox - Polybutylene Terephthalate (PBT)

LATCH (ALT): Xenoy - Polyester/Polycarbonate blend

O-RING: EPDM

PINS: Stainless Steel

PINS (ALT): Aluminum

FOAM: 1.3/1.35 polyester

PURGE BODY: Valox - Polybutylene Terephthalate (PBT)

PURGE BODY (ALT): Xenoy - Polyester/Polycarbonate blend

PURGE VENT: Gortex membrane

MINIMUM TEMPERATURE: -20° F (-29 ° C)

MAXIMUM TEMPERATURE: 140° F (60 ° C)


Add For Total Gear Protection:

Pelican Storm iM3220 Case

Waterproof and Dustproof

MAXIMUM WATER & DUST PROTECTION

A silicone O-ring is fit into a groove in the lid of each Pelican Storm iM3220 Case. This provides the famous IP67 waterproof rating that Pelican cases are known for.

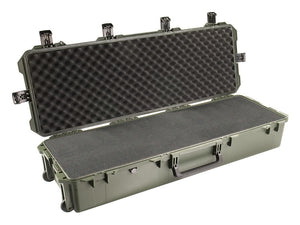

Customizable Solid Foam Insert

MAXIMUM GEAR PROTECTION

Order the Pelican Storm iM3220 Case empty or with a layered, solid foam insert. Use a utility knife and cut out detailed shapes to create custom-fit compartments for your gear. Simply layout your gear, trace it and start cutting the foam.

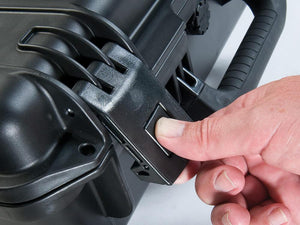

Push-Button Latches

HEAVY DUTY. STRONG. DURABLE

The convenient push-button latches found on the Pelican Storm iM3220 Case are sturdy and easy-to-use. The press and pull design ensures the latches cannot be accidentally flipped open during transport.

pelican storm case with push-button latches

Lockable Hasps

LOCK YOUR CASE WITH A PADLOCK

The Pelican Storm iM3220 Case Pelican Storm case has pad-lockable hasps so you can secure your gear in a locked case using a standard combo/keyed padlock or TSA lock.
(Locks not included with case)

Wheels Included

TAKE THIS CASE ANYWHERE

Every Pelican Storm iM3220 Case comes standard with wheels, making it very easy to transport. Grab the handle at the opposite end of the case and pull it along behind you.

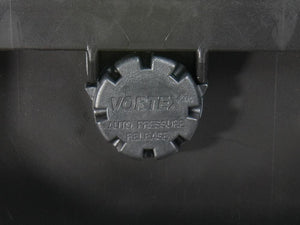

Pressure Equalization Valve

KEEP WATER OUT. LET AIR IN.

A woven, waterproof membrane in the valve ensures air molecules pass through while keeping water molecules out.

Your case stays dry and the air pressure inside remains equal to the outside air pressure—preventing a vacuum lock from forming when transporting your Pelican case between altitudes.

Accessories For The Pelican Storm iM3220 Case

The Pelican Storm iM3220 Case

  • With a unique Press and Pull latch that locks automatically, but open with a light touch
  • Six Press and Pull Latches
  • Two Padlockable Hasps
  • Two Double-layered, Soft-grip Handles
  • Vortex Valve
  • Powerful Hinges
  • O-ring seal
  • Lightweight Strong HPX® Resin
  • Retention Strap Instructions
  • The Pelican Storm iM3220 case is available in Canada right here at CasePlace.ca

Replacement foam for the Pelican Storm iM3220 Case:

INTERIOR (L X W X D)
44.00" x 14.00" x 8.50" (111.8 x 35.6 x 21.6 cm)

EXTERIOR (L X W X D)
47.20" x 16.50" x 9.20" (119.9 x 41.9 x 23.4 cm)

LID DEPTH: 2.00" (5.1 cm)

BOTTOM DEPTH: 6.50" (16.5 cm)

TOTAL DEPTH: 8.5" (21.6 cm)

INT VOLUME: 3.03 ft³ (0.086 m³)

WEIGHT WITH FOAM: 24.80 lbs (11.2 kg)

WEIGHT EMPTY: 20.40 lbs (9.3 kg)

BUOYANCY: 188.32 lbs (85.4 kg)

FOAM LAYERS: Layer 1 (Lid): 2.00" - Convolute / Layer 2 (Base): 0.50" - Pad / Layer 3 (Base): 2.00" - Pad / Layer 4 (Base): 2.00" - Pad / Layer 5 (Base): 2.00" - Pad

BODY: Injection Molded HPX high performance resin

LATCH: Valox - Polybutylene Terephthalate (PBT)

LATCH (ALT): Xenoy - Polyester/Polycarbonate blend

O-RING: EPDM

PINS: Stainless Steel

PINS (ALT): Aluminum

FOAM: 1.3/1.35 polyester

PURGE BODY: Valox - Polybutylene Terephthalate (PBT)

PURGE BODY (ALT): Xenoy - Polyester/Polycarbonate blend

PURGE VENT: Gortex membrane

MINIMUM TEMPERATURE: -20° F (-29 ° C)

MAXIMUM TEMPERATURE: 140° F (60 ° C)
