SKU: 017700-0010-110

Interior Dimensions:
54.58" x 15.58" x 8.63" (138.6 x 39.6 x 21.9 cm)

Price
$944.95 CAD
Configuration:
No Foam

Free Shipping over $195 *

Some Exceptions. Details Below.

30-Day Returns

Return new & unused within 30 days.

Lifetime Warranty

If it breaks, Pelican will replace it.

Shipping Details
Product Description

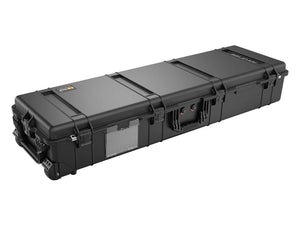

The Pelican 1770 Case

  • Also available from Pelican: The 1740 Long Case
  • Four extra-deep base-to-lid locking cleats that ensure maximum stacking stability
  • Watertight, crushproof, and dustproof
  • 4-piece foam set
  • O-ring seal
  • Open cell core, polymer wall construction
  • Stainless steel hardware and padlock protectors
  • Two Integrated Automatic Pressure Equalization Valves
  • Two rugged double-wide handles
  • Wide-track polyurethane wheels with ball bearings and nylon hubs
  • The Pelican 1770 case is available in Canada right here at CasePlace.ca

Available Accessories for the Pelican 1770 Case:

Product Specifications

INTERIOR (L X W X D)
54.58" x 15.58" x 8.63" (138.6 x 39.6 x 21.9 cm)

EXTERIOR (L X W X D)
57.42" x 18.48" x 11.23" (145.8 x 46.9 x 28.5 cm)

LID DEPTH: 1.88" (4.8 cm)

BOTTOM DEPTH: 6.75" (17.1 cm)

TOTAL DEPTH: 8.63" (21.9 cm)

INT VOLUME: 4.25 ft³ (0.12 m³)

WEIGHT WITH FOAM: 36.00 lbs (16.3 kg)

WEIGHT EMPTY: 29.00 lbs (13.2 kg)

BUOYANCY: 280.00 lbs (127 kg)

FOAM LAYERS INCLUDE:

Lid Layer: 1.88" convoluted pad

Base Layer 1: 3.75" Pick and Pluck

Base Layer 2: 3.75" Pick and Pluck

Base Layer 3: 1.5" solid pad (on very bottom of case)

BODY: Polypropylene

LATCH: ABS

O-RING: EPDM

PINS: Stainless Steel

PURGE BODY: ABS

PURGE VENT: 3 Micron Hydrophobic Non-Woven

Pelican 1770 Case

Waterproof and Dustproof

MAXIMUM WATER & DUST PROTECTION

A silicone O-ring is fit into a groove in the lid of each Pelican case. This provides the famous IP67 waterproof rating that Pelican cases are known for.

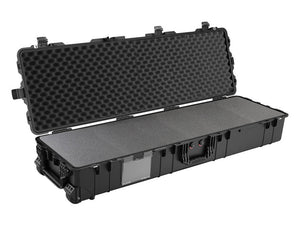

Customizable Cubed Foam Insert

MAXIMUM GEAR PROTECTION

Order your Pelican 1770 Case empty or with a removable cubed (pick 'n' pluck) foam insert. The foam is scored into cubes so you can create compartments to store and protect your gear. Lay out your gear, mark the foam, and start plucking out the cubes.

Sturdy Latches

HEAVY DUTY. STRONG. DURABLE

The double-throw latches found on the Pelican 1770 Case are durable and provide a positive, sturdy and simple latching system to avoid unwanted opening during transport.

Lockable Hasps

LOCK YOUR CASE WITH A PADLOCK

Secure your gear inside the Pelican 1770 Case. There are stainless-steel reinforced hasps beside every latch so you can secure your gear in a locked case using a standard combo/keyed padlock or TSA lock.
(Locks not included with case)

Pressure Equalization Valve

KEEP WATER OUT. LET AIR IN.

A woven, waterproof membrane in the valve ensures air molecules pass through while keeping water molecules out.

Your case stays dry and the air pressure inside remains equal to the outside air pressure—preventing a vacuum lock from forming when transporting your Pelican case between altitudes.

Order your Pelican 1770 Case from CasePlace Canada
