Pelican 1630 Transport Case

Interior Dimensions:
27.70" x 20.98" x 15.50" (70.4 x 53.3 x 39.4 cm)

Price: $642.95 CAD

Configuration:

Color: Black

Quantity

SKU: 1630-001-110

Free Shipping over $195 *

Some Exceptions. Details Below.

Lifetime Warranty

If it breaks, Pelican will replace it.

30-Day Returns

Return new & unused within 30 days.

Shipping Details

Product Description

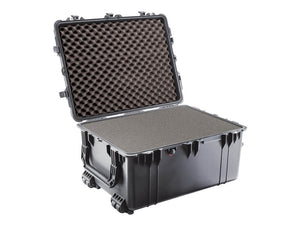

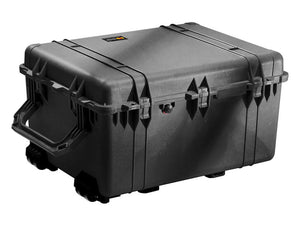

The Pelican 1630 Transport Case

4 strong polyurethane wheels with stainless steel bearings (wheel diameter is 5.3cm)
Watertight, crushproof, and dustproof
3 level Pick N Pluck with convoluted lid foam
Automatic Pressure Equalization Valve - balances interior pressure, keeps water out
Easy open Double Throw latches
Fold down handles
Note: Please consult a sales specialist for more details.
O-ring seal
Open cell core with solid wall design - strong, light weight
Reinforced corners

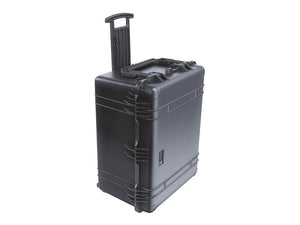

Retractable extension handle
Stackable
Stainless steel padlock protectors
The Pelican 1630 Transport Case in Canada from CasePlace.ca

Available Accessories for the Pelican 1630 Transport Case:

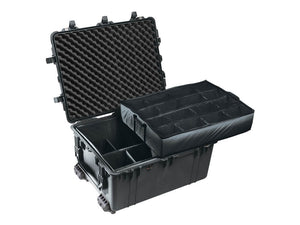

1630 Padded Divider Set

1630 Lid Organizer

Pelican 1630 Large Case Replacement Foam Sets

1630 Side Document Holder

Product Specifications

INTERIOR (L X W X D)
27.70" x 20.98" x 15.50" (70.4 x 53.3 x 39.4 cm)

EXTERIOR (L X W X D)
31.28" x 24.21" x 17.48" (79.5 x 61.5 x 44.4 cm)

LID DEPTH: 3.25" (8.3 cm)

BOTTOM DEPTH: 12.14" (30.8 cm)

TOTAL DEPTH: 15.39" (39.1 cm)

INT VOLUME: 5.21 ft³ (0.148 m³)

WEIGHT WITH FOAM: 36.00 lbs (16.3 kg)

WEIGHT EMPTY: 31.00 lbs (14.1 kg)

BUOYANCY: 350.00 lbs (158.8 kg)

FOAM LAYERS: Layer 1 (Lid): 3.20" - Pad / Layer 2 (Base): 1.00" - Pad / Layer 3 (Base): 3.75" - Pick N Pluck / Layer 4 (Base): 3.75" - Pick N Pluck / Layer 5 (Base): 3.75" - Pick N Pluck

BODY: Polypropylene

LATCH: ABS

O-RING: Polymer

PINS: Stainless Steel

FOAM: 1.3 lb Polyurethane

PURGE BODY: ABS

PURGE VENT: 3 Micron Hydrophobic Non-Woven

MINIMUM TEMPERATURE: -40° F (-40 ° C)

MAXIMUM TEMPERATURE: 210° F (99 ° C)

WHEELS: 4

EXTENDABLE HANDLE: yes

Add For Total Gear Protection:

1500CI Corrosion Intercept Kit

Price: $51.95 CAD

Pelican 1630 Transport Case

Waterproof and Dustproof

MAXIMUM WATER & DUST PROTECTION

A silicone O-ring is fit into a groove in the lid of each Pelican case. This provides the famous IP67 waterproof rating that Pelican cases are known for.

Customizable Cubed Foam Insert

MAXIMUM GEAR PROTECTION

Order your Pelican 1630 Transport Case empty or with a removable cubed (pick 'n' pluck) foam insert. The foam is scored into cubes so you can create compartments to store and protect your gear. Lay out your gear, mark the foam, and start plucking out the cubes.

Sturdy Latches

HEAVY DUTY. STRONG. DURABLE

The double-throw latches found on the Pelican 1630 Transport Case are durable and provide a positive, sturdy and simple latching system to avoid unwanted opening during transport.

Lockable Hasps

LOCK YOUR CASE WITH A PADLOCK

Secure your gear inside the Pelican 1630 Transport Case. There are stainless-steel reinforced hasps beside every latch so you can secure your gear in a locked case using a standard combo/keyed padlock or TSA lock.
(Locks not included with case)

Pressure Equalization Valve

KEEP WATER OUT. LET AIR IN.

A woven, waterproof membrane in the valve ensures air molecules pass through while keeping water molecules out.

Your case stays dry and the air pressure inside remains equal to the outside air pressure—preventing a vacuum lock from forming when transporting your Pelican case between altitudes.
